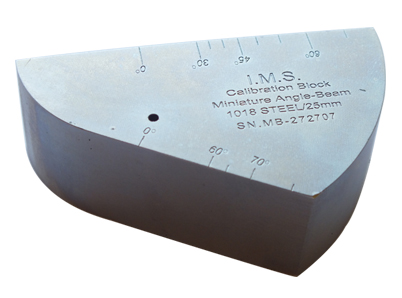

Miniature Angel Block
ASTM E164
Calibration of shear and longitudinal transducers, and verification of shear wedge exit point and refracted angle. Can also be used for resolution and sensitivity checking
| Material | Carbon Steel | Stainless Steel | Aluminum |
| Material Grade | 1018 | SS304 | 7075 |
| Dimensions | Metric | Metric | Metric |
| Thickness | 25mm | 25mm | 25mm |
| Hole Diameter | 2mm | 2mm | 2mm |
| Coating | Nickel Plated | Nickel Plated | Nickel Plated |
| Certification | Available | Available | Available |

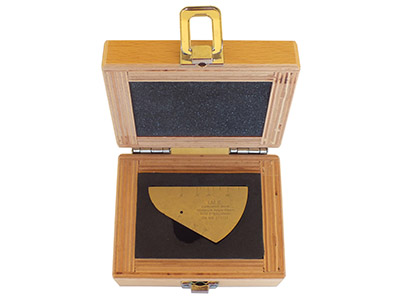

| Packing | Special Wooden Case | Special Wooden Case | Special Wooden Case |
| Price | Contact Us | Contact Us | Contact Us |
